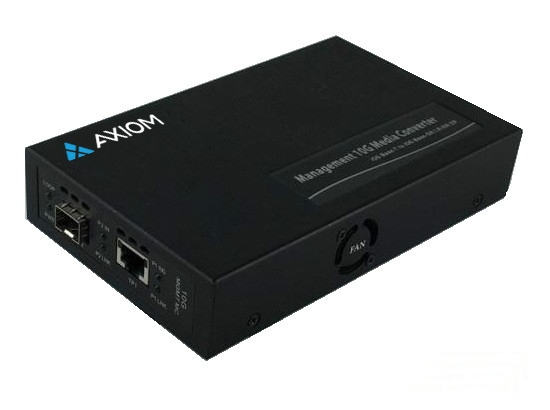

AC-MMC62M-SS

Category: 10G Managed Standalone Media Converter

Description: 10G 3R SFP+ to SFP+, Standalone, OEO Converter

Comparable to OEM #: N/A

Features

Axiom’s Managed 10Gigabit Media Converter allows the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. Our converters utilize Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using.

• Open SFP+ port provides flexibility to install MMF or SMF optics
• 10Gbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Support SFP DMI (Diagnostic Monitoring Interface) function
• Supports remote management and remote power off alarming
• Easy installation with complete LED indicators for working situation

Specifications

Transmission Speed: 10Gb/s ( 9.95Gb/s-11.35Gb/s )
Protocols: IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM)
Access Type: 10G LAN/ 10G WAN
Interface Type: SFP+ To SFP+
Transmission Distance: Up to 80Km
Maximum Packet Forwarding Rate: 14,880,950/S

Network management information:
• SFP+ fiber module detection
• SFP+ fiber module DMI function (Temperature, Voltage, Optical power)
• Link status detector
• Enable/Disabled Loopback test function
• Rate select (10Gbase-Lan or Wan)

Power Requirement: Standalone: AC 220V OR DC -48V
Power consumption: =6W
Work Environment: Operating Temp: 0~ 50 ?
Storage Temp: -10°C ~ 70°C
Humidity: 5%~90% (non-condensing)

Warranty

3 Year Limited Warranty
