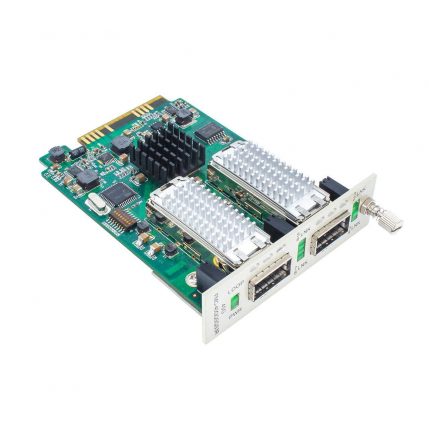

AC-MMC606C-QSFP

Category: 40G Managed Media Converter Card

Description: 40G 3R, QSFP+ to QSFP+, OEO Transponder Card

Comparable to OEM #: N/A

Features

Axiom’s Managed 40Gigabit Media Converter allows the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. Our converters utilize QSFP+ transceivers allowing you to customize each converter for the cable type you are using.

• Open QSFP+ port provides flexibility to install MMF or SMF optics
• Supports 1*40G Mode and 4*10G Mode
• Supports Loopback test, precisely locating the failure, convenient for link test
• 3R function, stable data transmission
• Short delay time when transparent transmission
• Supporting Jumbo frame
• Supporting DMI (Diagnostic Monitoring Interface) function of optical transceivers
• With powerful network management function, supporting WEB and SNMP
• Hot pluggable
• Easy installation with complete LED indicators for working situation
• Supporting Axiom 2U Chassis (AC-MMC6000CH-AA)

Specifications Warranty

Specifications

Axiom's 40G 3R QSFP to QSFP Transponder is a high-performance 40G optical signals repeater, using Optical – Electrical – Optical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with CWDM technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

Physical Port
Optical Interface: QSFP+ interface×2
Data rate: Up to 40G

Parameters
Protocol: Multiple functions in one module: 40G converter/repeater—Quad 10G optical multiplexer 40G link interface
Ethernet/IEEE 802.3ba 40GE-SR4/LR4/ER4
10G interface: 9.95 ~ 11.3125Gbps
Regeneration: Re-Amplification, Re-Shaping, Re-Timing
LED Indicator: Power, System, Mode, Test, FX1 Link, FX2 Link, FX3 Link, FX4 Link

Power
Power Input: DC 5V

Power Consumption: Full-load<8W

Physical Specs
Dimensions: 120mm×90mm×22mm
Installation Mode: Axiom 2RU Chassis (AC-MMC6000CH-AA)
Weight: 0.22lb

Environment
Operating Temperature: 0°C~50°C
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -10°C~70°C
MTBF: 50,000 hours

Certifications
EMC: FCC Part15 Class A
CE-EMC/LVD
RoHS
EN61000-4-2 (ESD), EN61000-4-3 (RS)
EN6100044 (EFT), EN6100045 (Surge)
EN61000^1-6 (CS), EN61000-4-8
EN61000-4-11

Warranty

3 Year Limited Warranty
