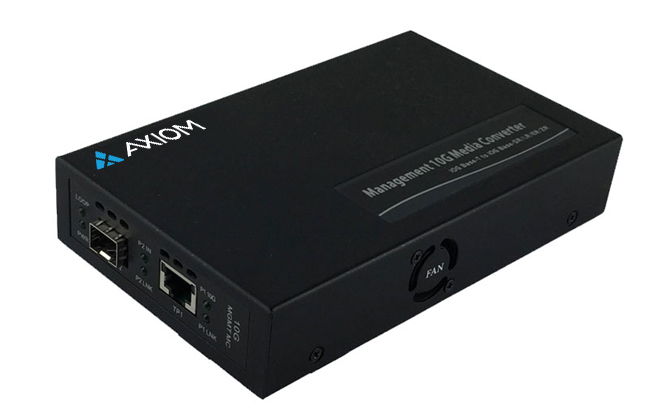

AC-MMC56M-SFP

Category: 10G Managed Standalone Media Converter

Description: 10Gbs RJ45 to SFP+ Standalone, Managed Fiber Media Converter - Open SFP+ Port

Comparable to OEM #: N/A

Features

Axiom’s Managed 10Gigabit Media Converter allows the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. Our converters utilize Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using.

• Open SFP+ port provides flexibility to install MMF or SMF optics
• 10Gbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Support SFP DMI (Diagnostic Monitoring Interface) function
• Supports remote management and remote power off alarming
• Easy installation with complete LED indicators for working situation

Specifications

Physical Port
Copper Port: 10GBASE-T RJ45
SFP Port: 10GBASE-X SFP+

Parameters
Ethernet Standards: IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet
Access Type: 10G LAN
Transmission Distance:
SFP+ module: Up to 80Km
10Gbase-T: 100meter CAT6A cable
Maximum Packet Forwarding Rate: 14,880,950/S

LED Indicator: Power, FX-Link, FX Duplex, TX-SPD, TX-Duplex, TX-Link

Power Information
Power Input: DC5V 4A
Power Consumption: <6W (without module)

Physical Specs
Dimensions: 172mm×105mm×32mm
Installation Mode: wall-mountable
Weight: 1.76lb

Environment
Operating Temperature: 0°C~50°C
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -10°C~70°C
MTBF: 50,000 hours

EMC Certification Standard:
FCC Part15 Class A
CE-EMC/LVD
RoHS
EN61000-4-2 (ESD), EN61000-4-3 (RS)
EN6100044 (EFT), EN6100045 (Surge)
EN61000^1-6 (CS), EN61000-4-8
EN61000-4-11

Warranty

3 Year Limited Warranty
