Home / Products / AC-MMC121R-SFP

AC-MMC121R-SFP

Category: 1G Managed Standalone Media Converter

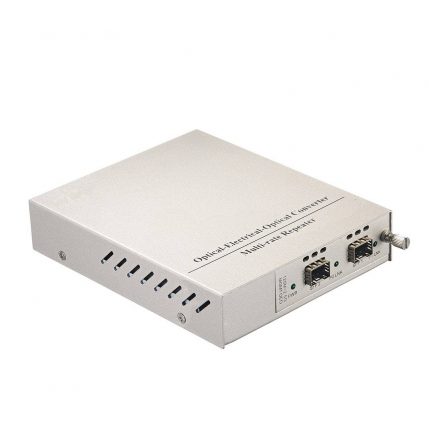

Description: 2.5G 1R SFP to SFP Standalone, OEO Transponder

Comparable to OEM #: N/A

Features

Axiom’s Managed Gigabit Media Converter allows the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. Our converters utilize Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using.

• Open SFP port provides flexibility to install MMF or SMF optics
• 10/100/1000Mbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Support SFP DMI (Diagnostic Monitoring Interface) function
• Supports remote management and remote power off alarming
• Easy installation with complete LED indicators for working situation

Specifications Warranty

Specifications

2.5G 1R SFP to SFP Transponder with SFP Slot to SFP Slot, which uses Optical-Electricity-Optical conversion principle to realize the optical-optical signal amplification, and wavelength conversion, with coarse / dense wavelength division multiplexing together to realized WDM transmission. It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.

Physical Port
Optical Interface: SFP interface×2
Data rate: 1Gbps~2.5Gbps

Parameters
Protocol: OC -3, OC -6, OC -12, STM-1, STM-4, STM-16, FC -1, FC -2, FC -4
LED Indicator: Power, System, Mode, Test, FX1 Link, FX2 Link, FX3 Link, FX4 Link

Power
Power Input: AC 220V/DC -48V
Power Consumption: Full-load<12W

Physical
Dimensions: 160mm×130mm×32mm
Installation Mode: wall-mountable
Weight: 1.76lb

Environment
Operating Temperature: 0°C~50°C
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -10°C~70°C
MTBF: 50,000 hours

Certifications
EMC: FCC Part15 Class A
CE-EMC/LVD
RoHS
EN61000-4-2 (ESD), EN61000-4-3 (RS)
EN6100044 (EFT), EN6100045 (Surge)
EN61000^1-6 (CS), EN61000-4-8
EN61000-4-11

Warranty

3 Year Limited Warranty
