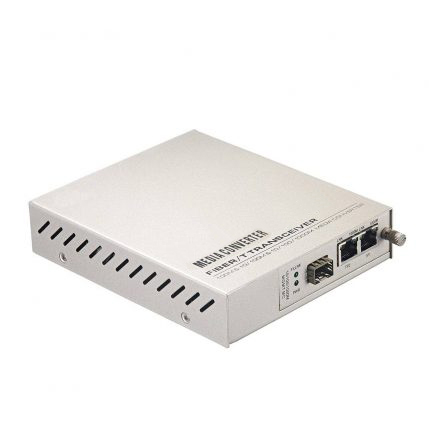

AC-MMC114R-SFP

Category: 1G Managed Standalone Media Converter

Description: 2 x 1Gbs RJ45 to SFP Standalone, Managed Fiber Media Converter - Open SFP Port

Comparable to OEM #: N/A

Features

Axiom’s Managed Gigabit Media Converter allows the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. Our converters utilize Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using.

• Open SFP port provides flexibility to install MMF or SMF optics
• 10/100/1000Mbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Support SFP DMI (Diagnostic Monitoring Interface) function
• Supports remote management and remote power off alarming
• Easy installation with complete LED indicators for working situation

Specifications Warranty

Specifications

Physical Port
Copper Port: 10/100/1000Base-T RJ45×2
SFP Port: 100/1000BASE-X SFP interfaces
Fiber Mode: 1000BASE-X, 550m-120km

Parameters
Ethernet Standards: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x flow control and back pressure
TS-1000
IEEE 802.3ah terminal

Packet Length: 2046bytes
Transmission Mode: Store and Forward
Exchange Property: Delay time: < 7ps
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps

DIP Switches
LFP function:Disable/Enable
Remote control:Disable/Enable

Managed Features:
-Supports LFT (Link Fault Pass Through)
-Supports Digital Diagnostic Monitor Interface (DDM) for SFP
-Supports OAM/IP in-band management
-Ingress/Egress Bandwidth control per port
-Supports 16 IEEE 802.1Q Tag VLAN Group
-SNMP alarm trap for power loss and port link down
-Remote loop back test
-Dying gasp (remote power failure detection)

Power
Power Input: AC 220V/DC -48V
LED Indicator: Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP

Power Consumption: Full-load<4W

Physical
Dimensions: 160mm×130mm×32mm
Installation Mode: wall-mountable
Weight: 1.76lb

Environment
Operating Temperature: 0°C~50°C
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -10°C~70°C
MTBF: 50,000 hours

Certifications
EMC: FCC Part15 Class A
CE-EMC/LVD
RoHS
EN61000-4-2 (ESD), EN61000-4-3 (RS)
EN6100044 (EFT), EN6100045 (Surge)
EN61000^1-6 (CS), EN61000-4-8
EN61000-4-11

Warranty

3 Year Limited Warranty
