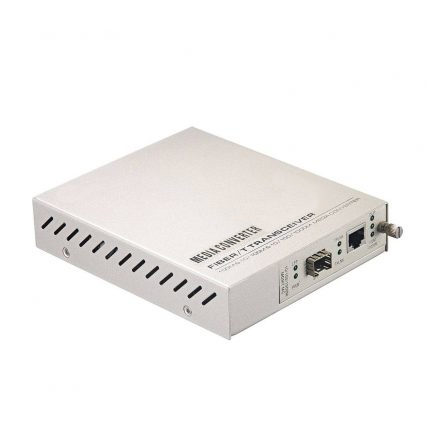

AC-MMC103R-SFP

Category: 1G Managed Standalone Media Converter

Description: 1Gbs RJ45 to SFP Standalone, Managed Fiber Media Converter - Open SFP Port

Comparable to OEM #: N/A

Features

Axiom’s Managed Gigabit Media Converter allows the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. Our converters utilize Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using.

• Open SFP port provides flexibility to install MMF or SMF optics
• 10/100/1000Mbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Support SFP DMI (Diagnostic Monitoring Interface) function
• Supports remote management and remote power off alarming
• Easy installation with complete LED indicators for working situation

Specifications Warranty

Specifications

Physical Port
Copper Port: 10/100/1000Base-T RJ45
SFP Port: 100/1000BASE-X SFP interfaces, 550m-120km

Ethernet Standards:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x flow control and back pressure
TS-1000
IEEE 802.3ah terminal

Packet Length: 2046bytes
Transmission Mode: Store and Forward/Cut through
Exchange Property: Delay time: < 7ps
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
DIP Switches:LFP function:Disable/Enable

Managed Features
Supports LFT (Link Fault Pass Through)
Supports Digital Diagnostic Monitor Interface (DDM) for SFP
Supports OAM/IP in-band management
Ingress/Egress Bandwidth control per port
Supports 16 IEEE 802.1Q Tag VLAN Group
SNMP alarm trap for power loss and port link down
Remote loop back test
Dying gasp (remote power failure detection)

LED Indicator: Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP

Power Information
Power Input: AC 220V/DC -48V
Power Consumption: Full-load<4W

Physical
Dimensions: 160mm×130mm×32mm
Installation Mode: wall-mountable
Weight: 1.76lb

Environment
Operating Temperature: 0°C~50°C
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -10°C~70°C
MTBF: 50,000 hours

EMC Certification Standard
FCC Part15 Class A
CE-EMC/LVD
RoHS
EN61000-4-2 (ESD), EN61000-4-3 (RS)
EN6100044 (EFT), EN6100045 (Surge)
EN61000^1-6 (CS), EN61000-4-8
EN61000-4-11

Warranty

3 Year Limited Warranty
