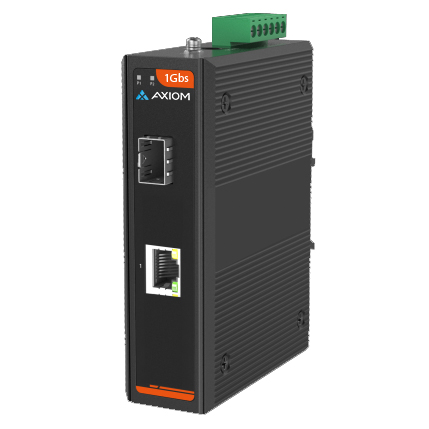

AC-MC7N31-SFP

Category: 1G Industrial Temp Media Converter

Description: Industrial 1Gbs RJ45 to SFP Fiber Media Converter - Open SFP Port

Comparable to OEM #: N/A

Features

The Axiom Industrial Fiber Media Converter provides cost-effective, media conversion between 1×10/100/1000Base-TX ports and 1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. It can operate under temperatures ranging from -40°C to 75 °C and is with IP40 rugged case to ensure continuous operation in harsh environments such as transportation, factories, outdoors, and places where extremely low or high temperatures can be experienced.

• Operating Temperature Range of -40°C – 75°C
• Rugged IP40 Aluminum Case, Compact and Fanless Design
• Open SFP port provides flexibility to install MMF or SMF optics
• 10/100/1000Mbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Dual Redundant DC9~56V power input
• Power input polarity protection
• Free fall, shock proof and vibration proof
• Plug and play; no software configuration is needed
• Either DIN rail or Wall Mount installation

Specifications Warranty

Specifications

Ethernet Interface
RJ45 Port: 1×10/100/1000Base-TX
Optical Port: 1x1000Base-X SFP/1×9
Port Mode(Tx): Auto Negotiation Speed
Full/Half Duplex Mode
Auto MDI/MDI-X Connection

Standards: IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3z for 100BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
Maximum Packet Length: Up to 10K
Forward Filter Rate: 14,880pps(10Mbps)
148,800pps(100Mbps)
1,488,000pps(1000Mbps)

Transmission Distance: SFP Port: Depends on optical module(0-160km)
RJ45 Port Transmission Distance: 100m (using standard CAT5/CAT5e cable)

Physical Characteristics
Housing: Aluminum case
IP Rating: IP40
Dimensions: 120mmx90mmx35mm
Installation Mode: DIN Rail or Wall Mount
Weight: 0.77lb

Environmental
Operating Temperature: -40°C~75°C
Operating Humidity: 5%~90% (non-condensing)
Storage Temperature: -40°C~85°C
MTBF: 2,573,692 Hours
Standard: Telcordia SR-332 GF 30°C

Heat Dissipation: 7 BTU/h

Warranty

3 Year Limited Warranty
