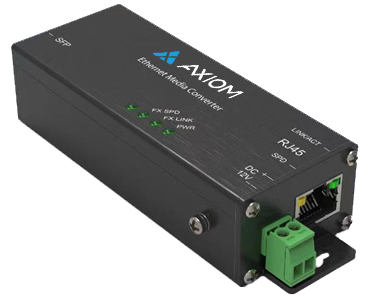

AC-MC703-SFP

Category: 1G Industrial Temp Mini Media Converter

Description: Mini-Industrial 1Gbs RJ45 to SFP Fiber Media Converter - Open SFP Port

Comparable to OEM #: N/A

Features

The Axiom Mini-Industrial Fiber Media Converter provides cost-effective, media conversion between 1×10/100/1000Base-TX ports and 1000Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. It can operate under temperatures ranging from -40°C to 75 °C and is with IP40 rugged case to ensure continuous operation in harsh environments such as transportation, factories, outdoors, and places where extremely low or high temperatures can be experienced.

• 10/100/1000Mbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Open SFP port provides flexibility to install MMF or SMF optics
• Rugged IP40 Aluminum Metal Enclosure for harsh environments
• Operating Temperature Range of -40°C – 75°C
• LED Indicates Diagnostic & DIP-switch Ethernet OAM
• Support IEEE 802.3x Flow Control
• Both Desktop and Wall Mounting installation

Specifications Warranty

Specifications

Ethernet Interface
Ports: 1×10/100/1000Base-TX RJ45 ports, 1×100/1000Base-FX SFP ports
Pors Mode(Tx): Auto Negotiation Speed, Full/Half Duplex Mode, Auto MDI/MDI-X Connection
Standards: IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
Maximum Packet Length: Up to 10K
Forward Filter Rate: 14,880pps(10Mbps)
148,800pps(100Mbps)
1,488,000pps(1000Mbps)
Transmission Mode: Store and Forward (full/half duplex mode)

Transmission Distance
SFP Port: Depends on optical module(0-160km)
RJ45 Port: 100m(using standard CAT5/CAT5e cable)

Power Information
Input Power: 12VDC
Power Consumption 2.4W Max. 0.2A@12VDC

Physical Characteristics
Housing: Aluminum case
IP Rating: IP40
Dimensions: 36.2mm*117mm*24.5mm
Installation Mode: Wall Mounting
Weight: 0.33lb

Working Environment
Operating Temperature: -40?~75? (-40 to 167 ?)
Operating Humidity: 5%~90% (non-condensing)
Storage Temperature: -40?~85? (-40 to 185 ?)

DIP Switch
#1 LFP(Link Fault Pass Through) ON/OFF
#2 ALS(Only for SFP) ON/OFF
#3 FX Rest ON/OFF
#4 FX Speed Setting
OFF: Fixed 1000M
ON: 100M/1000M

Warranty

3 Year Limited Warranty
