Category: Bluetooth Coding and Tuning Box

Description: AX-Coder Bluetooth Coding and Tuning Box 2.0 - QSFP, SFP & XFP

Comparable to OEM #: N/A

Features

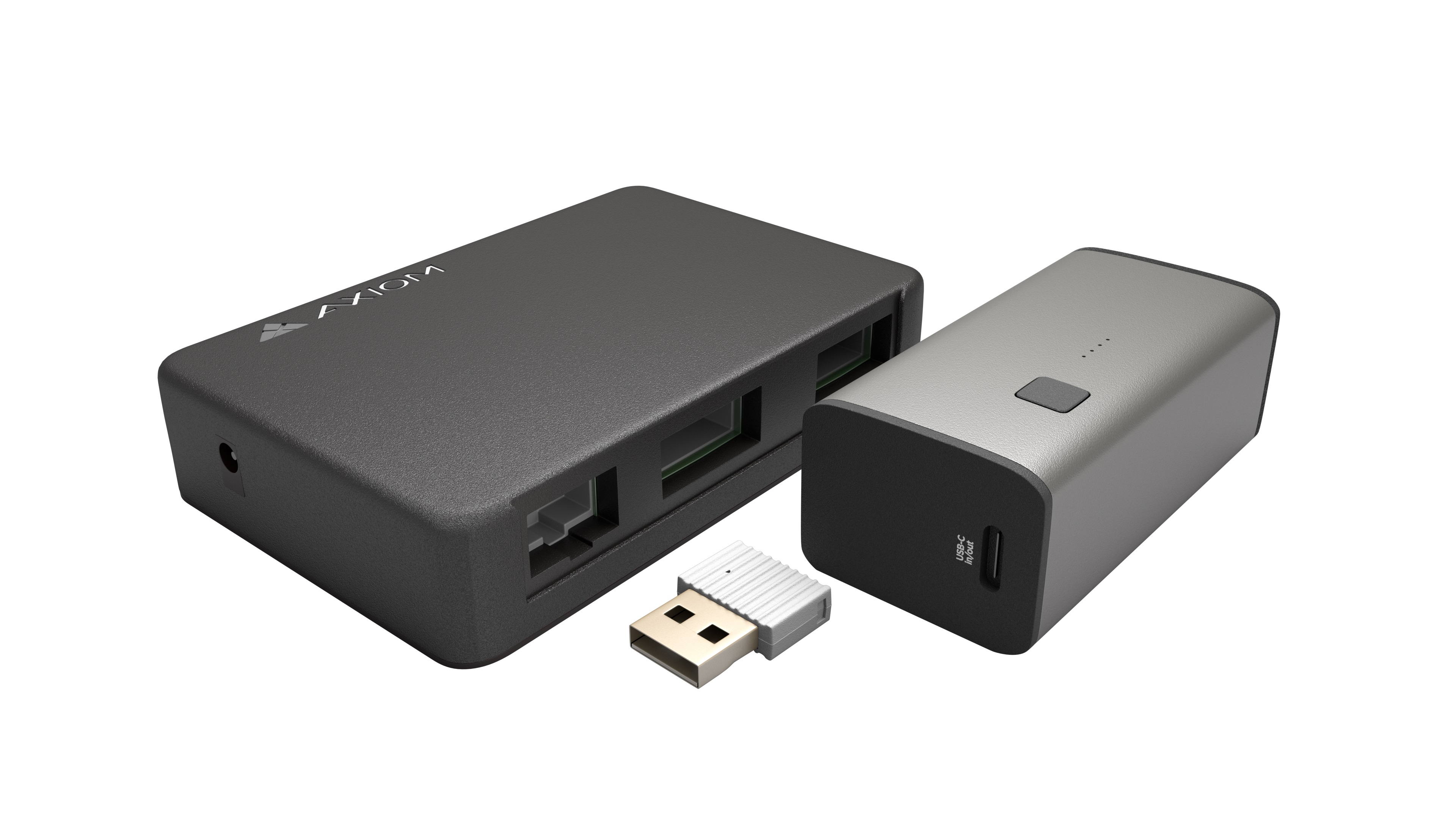

Introducing Axiom Connectivity’s Coding Box 2.0. The second-generation coding/tuning solution offers the ability to code AXIOM transceivers and to tune DWDM transceivers in real-time. Axiom’s Coding Box 2.0 is Bluetooth-enabled, allowing users to tune their optics without a USB connection.

With Axiom’s Coding Box 2.0, operators can code AXIOM transceivers manually to ensure compatibility with a multitude of OEM branded platforms. The solution also allows operators to tune transceivers to any channels in the C-Band spectrum with 50GHz to 100GHz spaced channels. The ability to tune transceivers on-the-fly drastically minimizes inventory. The compact-sized coding solution allows operators to make immediate adjustments without the need to carry around bulky tuning equipment.

AXCoder, Axiom’s signature tuning app, enables users to tune their optics and easily configure AXIOM transceiver compatibilities at ultra-fast configuration speeds. AXCoder is a cloud-based tuning app for both Android and iOS devices, which allows users to access/monitor/record system diagnostics while offering full traceability from the transceiver’s functionality (DDM) to the coding operation. Manage your optics with greater efficiency and reliability with AXCoder.

Features and Specifications:
• Bluetooth Connectivity and compact sizing provide ultimate portability
• Supported Browsers: Chrome and Edge (108 and newer)
• Applications: Android and iOS
• Coding for compatibility with OEM platforms
• Tuning for DWDM modules and systems
• Customization of coding features based on network needs
• Support for form factors: SFP, SFP+, XFP, QSFP+, QSFP28 & DAC/AOC Cables
• Compact sizing for greater portability
• Ultra-fast configuration speeds
• Connector: USB Type-A - micro
• Power on using portable batteries or laptop USB
• Operating Temperature: -10°C | +60°C
• Dimensions (LxWxH): 107.5 x 67 x 22mm
• Weight: 85g

*Note: The AX Coder only works with Axiom transceivers
