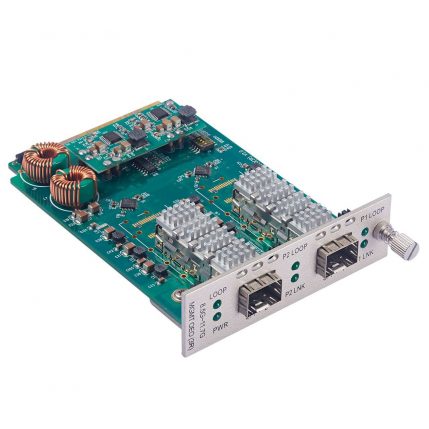

AC-MMC604C-SS

Category: 10G Managed Media Converter Card

Description: 8.5G~11.7G 3R Multi-Rate, SFP+ to SFP+, OEO Transponder Card, CDR

Comparable to OEM #: N/A

Features

Axiom’s Managed 10 Gigabit Media Converter allows the backbone of the network to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Management access can be achieved locally or remote standalone via network by Web, SNMP, Telnet or Console. Our converters utilize Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using.

• Up to 16 cards can be installed into Axiom's 2RU Chassis (AC-MMC6000CH-AA)
• Open SFP+ port provides flexibility to install MMF or SMF optics
• 10Gbps Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
• Support SFP DMI (Diagnostic Monitoring Interface) function
• Supports remote management and remote power off alarming
• Easy installation with complete LED indicators for working situation

Specifications Warranty

Specifications

The Axiom 10G 3R SFP to SFP Transponder is a high-performance 10G optical signals repeater, using Optical – Electrical – Optical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with CWDM technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

Physical Port
Optical Interface: SFP+ to SFP+
Data rate: 8.5Gbps~11.7Gbps

Parameters
Protocol: 10G interface:8.5 ~ 11.7Gbps
10Gbase-SR/LR/ER/ZR/LRM to 10Gbase-SR/LR/ER/ZR/LRM
SONET OC192, SDH STM-64, 10G WAN, 10G LAN, ONT OTU-2, 10G LAN witch 255/237 FEC coding, 8.5G/10G Fiber Channel, 10G POS
Regeneration: Re-Amplification, Re-Shaping, Re-Timing

Power
Power Input: DC 5V
Power Consumption: Full-load<8W
LED Indicator: Power, System, Mode, Test, FX1 Link, FX2 Link, FX3 Link, FX4 Link

Physical
Dimension:120mm×90mm×22mm
Installation Mode: Axiom 2RU Chassis (AC-MMC6000CH-AA)
Weight: 0.22lb

Environment
Operating Temperature: 0°C~50°C
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -10°C~70°C
MTBF: 50,000 hours

Certifications
EMC: FCC Part15 Class A
CE-EMC/LVD RoHS
EN61000-4-2 (ESD), EN61000-4-3 (RS)
EN6100044 (EFT), EN6100045 (Surge)
EN61000^1-6 (CS), EN61000-4-8
EN61000-4-11

Warranty

3 Year Limited Warranty
